Solar Panels on a Flat Roof: What Changes?

Q: "Do flat roof solar panels produce less electricity than pitched roof panels?"

"Not necessarily. A properly tilted flat-roof system produces output within 3–5% of a comparable south-facing pitched-roof system. The key is using tilt racking set to 20°–30°. A 10° tilt reduces output by 8–12% compared to a latitude-optimised angle, according to NREL. Racking choice is the single biggest variable controlling production on a flat roof."

Q: "How much extra does solar cost on a flat roof?"

"Flat-roof installations typically cost $0.30–$0.60 per watt more than pitched-roof systems, adding $2,100–$4,200 to a 7 kW project. The premium comes from tilt-racking hardware ($400–$900), a structural engineering assessment ($300–$600), and additional installation labour. After the 30% federal tax credit, the effective net premium drops to approximately $1,470–$2,940."

Q: "Can you put solar panels on a flat roof without drilling holes?"

"Yes. Ballasted racking systems use weighted concrete blocks to hold the array without penetrating the roof membrane — the standard approach for TPO and EPDM roofs. The trade-off is added weight of 3–6 lbs/sq ft, so a structural load assessment is still required before installation to confirm the roof deck can safely handle the additional load."

Q: "What is the best tilt angle for solar panels on a flat roof?"

"The optimal angle roughly matches your latitude — typically 25°–35° for most of the continental US. At 39°N (Denver), 30°–35° is close to optimal. Shallower angles reduce output; steeper angles increase wind uplift and require more ballast weight. Most residential installers settle at 20°–25° as a practical balance between annual output and racking load."

Q: "Will solar panels damage a flat roof?"

"Improperly installed systems can cause damage through poor drainage planning, excess ballast weight, or unflashed penetrations. When installed correctly — with a drainage walkthrough, stamped structural letter, and quality waterproofing at all penetration points — solar arrays do not harm the membrane. Shading panels provide can actually slow UV degradation, potentially extending membrane life by 3–5 years."

SAVE

$0+

Over 25 Years

$16,800 Cost after ITC

9.3 yrs Payback

8.0 kW Typical system

Most homeowners need:

20–24 panels typical
8.0 kW average system
$16,800 after tax credits
9.3 year payback

✓ Updated monthly ✓ NREL data ✓ Reviewed by solar experts ✓ IRS tax credit included

Updated April 14, 2026 · 11 min read ·By Mark Sullivan ·Reviewed by Green Energy Calculators Editorial Team

Calculate My Savings View State Incentives

Without solar vs with solar

25-year cost comparison for a $300/month US electric bill.

Without solar

25-year utility cost

$75,000

Rates rise ~3% per year (EIA avg.)

With solar

Net system cost

$16,800

After 30% federal ITC

Your savings

Difference

+$58,200

Estimated lifetime advantage

Author Mark Sullivan

Reviewed by Green Energy Calculators Editorial Team

Last updated Apr 14, 2026

Sizing formula kW = Annual kWh ÷ (Peak Sun Hours × 365 × 0.82)

Roughly 30% of commercial buildings in the United States have flat or low-slope roofs, and a growing number of homeowners — particularly those with modern, contemporary-style homes — face the same installation challenge: a roof that doesn’t naturally shed rain at the angle solar panels need to produce peak power. Flat isn’t actually flat in practice; most so-called flat roofs pitch between 1° and 5°, just enough for drainage. But solar panels work best between 20° and 40° of tilt, which means a flat-roof installation requires hardware, planning, and cost considerations that a standard pitched-roof job simply doesn’t.

The good news is that flat roofs can be excellent candidates for solar. You have more flexibility in panel orientation — south, east-west split arrays, or even portrait vs. landscape — and access for maintenance is far simpler. The trade-off is a higher upfront cost, typically 10–20% above a comparable pitched-roof system, driven primarily by tilt-racking hardware and the extra structural assessment that responsible installers require. Understanding these differences before you sign a contract means you won’t be caught off guard by line items that feel like surprises.

This guide covers everything that actually changes when you go solar on a flat roof: the racking systems available, how tilt angle affects energy output, the structural questions you need answered before permits are filed, drainage and ponding risks, and what all of it means for your payback period. Whether your flat roof is TPO, EPDM, modified bitumen, or built-up roofing, the core principles are the same.

Tilt-Racking Systems: Your Main Cost Driver on a Flat Roof

On a pitched roof, panels mount flush to the surface using simple rail-and-clamp systems. On a flat roof, you need a tilt-racking system to elevate the panels to a productive angle — and that hardware adds both material cost and installation time. The typical residential tilt-racking kit for a 7 kW system runs $400–$900, before accounting for the extra installation labour.

The two dominant flat-roof racking approaches are ballasted systems and penetrating systems. Ballasted racking uses concrete blocks or pavers to weigh down the racking frame without drilling through the roof membrane. This is the preferred choice on newer TPO or EPDM membranes because it eliminates the risk of penetration-related leaks. The downside is weight: a ballasted array can add 3–6 pounds per square foot to the roof load, compared to roughly 2.5–3 lbs/sq ft for a flush-mounted pitched-roof system. Your structural engineer needs to confirm the roof deck and joists can handle this before installation begins.

Penetrating systems anchor directly into the roof structure with waterproofed boots — the same approach used on pitched roofs, adapted for low-slope applications. They’re lighter than ballasted systems and better suited for roofs with weight limitations, but they require careful waterproofing at every penetration point. On aging flat roofs within 5 years of needing replacement, this creates a problem: re-roofing later means dismantling the array, which typically costs $1,500–$3,000 in additional labour.

Tilt angles on flat roofs are typically set at 10°–30° for residential systems. At 10°, panels shed water and debris but sacrifice output. NREL data shows that for most US latitudes, tilting panels to match your latitude angle — roughly 30°–40° for most of the continental US — maximises annual production. A 10° tilt on a flat roof in Arizona or Nevada can underperform a latitude-optimised system by 8–12% annually, which is worth calculating before you commit to a lower-tilt “minimal ballast” design.

East-west split arrays are increasingly popular on flat roofs, particularly for commercial buildings. Instead of all panels facing south at 20°–30°, half face east and half face west at a shallower 10°–15° angle. This produces a flatter generation curve across the day — less peak midday power, but better morning and afternoon output — which suits homeowners on time-of-use rate structures better than a pure south-facing array.

Find your exact solar savings

Enter your ZIP code for a personalized estimate using your state's electricity rate and sun hours.

Structural Load Assessment: What Every Flat-Roof Installer Must Check

Every flat-roof solar installation should begin with a structural load assessment. This is not optional, regardless of what some installers imply when rushing to close a sale. Flat roofs already carry dead loads (roofing materials, HVAC equipment) and live loads (rain, snow, workers). Adding a solar array means calculating whether the roof structure can safely carry the additional weight without risk of deflection or failure.

For a typical 7 kW residential system — approximately 18–20 panels — a ballasted array adds 1,500–2,500 lbs of racking and ballast weight spread across the array footprint. On a structurally sound roof designed to the standard 20 lbs/sq ft live load, this is usually manageable. Problems arise on older homes built to lighter standards, roofs with existing structural damage, or buildings where HVAC equipment already occupies much of the available load capacity.

The structural report typically costs $300–$600 from a licensed engineer and is separate from your installer’s site assessment. Some installers include it in their quote; many don’t. Ask explicitly before signing. If your installer skips this step entirely, treat it as a red flag. To apply this credit correctly, start with a firm figure from our guide to How Much Do Solar Panels Cost in 2026? Complete US.

Snow load is a particular concern in northern states. In Minnesota or Vermont, flat roofs must handle significant snow accumulation — state minimums in those climates run 30–50 lbs/sq ft for ground snow load, with roof factors applied. Tilted solar panels in those states present a snow-shedding problem: the ballast weight is designed to resist wind uplift, but a large snow deposit on tilted panels can shift load distribution in ways the original ballast calculations didn’t account for. Northern installers often specify 10–15% additional ballast weight at array edges to accommodate this.

Wind uplift is equally critical. Flat roofs generate significant uplift pressure at parapet edges and corners. Ballasted racking systems use wind-tunnel-tested layouts to determine where extra ballast weight is needed. Installers using certified racking from manufacturers such as IronRidge, Unirac, or Schletter provide engineering stamped for your jurisdiction, which is required for permit approval in most US counties.

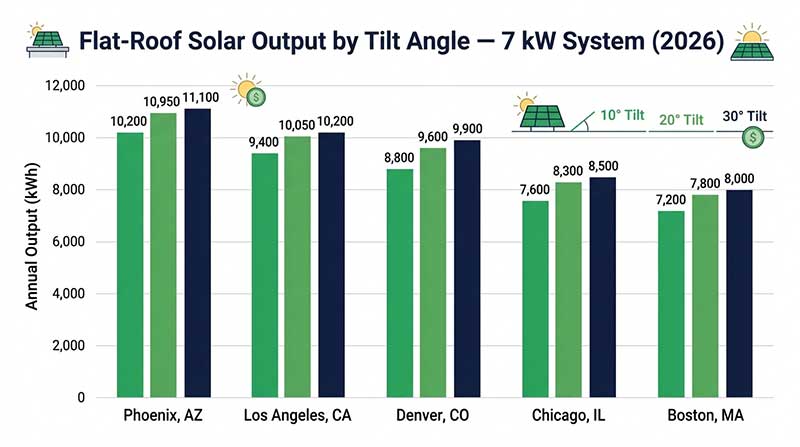

Bar chart comparing annual solar output at different tilt angles on a flat roof in five US cities — **Tilt angle has a measurable impact on flat-roof solar output.** A 30° tilt outperforms a 10° tilt by 8–14% annually depending on latitude — equivalent to 600–1,100 kWh per year on a 7 kW system. Source: NREL PVWatts, EIA 2026.

Drainage, Ponding Water, and Roof Membrane Compatibility

One of the most overlooked risks in flat-roof solar is what happens to water after it falls on the array. Solar panels on tilt frames create shadowed zones underneath the racking feet and between panel rows. These low-light, low-airflow areas are exactly where standing water collects — and standing water is the primary cause of premature flat-roof membrane failure.

Ponding water — defined by most roofing standards as water that remains standing 48 hours after rainfall — causes accelerated deterioration of EPDM and modified bitumen membranes. It also increases structural load (water weighs 62.4 lbs/cubic foot) and leads to drain blockages when debris accumulates under racking. Before any flat-roof solar installation, your roofer and solar installer need to jointly walk the roof to verify that drainage paths remain clear after racking is placed.

TPO membranes are the most solar-compatible option because they reflect UV and resist ponding better than black EPDM. If your roof has an aging membrane, it’s worth replacing it before installing solar rather than after. Re-roofing under an installed array typically costs $2,000–$4,500 extra in labour to temporarily move and reinstall panels — a cost that catches many homeowners off guard 8–10 years into ownership.

Racking feet placement must avoid blocking scuppers, interior drains, and crickets. Some ballasted systems now use raised-leg designs that maintain a 2–4 inch airflow and drainage gap under the racking, which also reduces heat buildup beneath the panels. High panel temperatures reduce output: for every 1°C above standard test conditions (25°C), most silicon panels lose approximately 0.35–0.45% in efficiency. Good airflow under flat-roof arrays can reduce operating temperature by 5–10°C versus flush mounting, partially offsetting any tilt-related output losses.

Roof penetrations — conduit runs, combiner boxes, disconnect locations — need waterproofed flashing boots regardless of whether the racking system itself is ballasted. The electrical components always require penetrations through the membrane, and these are where leaks most commonly develop years after installation. Ask your installer for the specific flashing product they use and whether it carries a 10-year or longer warranty. Reputable installers typically back their penetration work with a separate roofing warranty distinct from the panel and inverter warranties.

Permitting and Code Requirements for Flat-Roof Solar Systems

Permitting a flat-roof solar installation typically takes 2–6 weeks longer than a standard pitched-roof permit in the same jurisdiction. The main reason: most building departments require a stamped structural engineering letter for flat-roof applications, whereas many jurisdictions have expedited or pre-approved pathways for flush-mount pitched-roof systems that meet standard load tables.

The National Electrical Code (NEC 2020/2023) requirements are identical regardless of roof type — 3-foot setbacks from roof edges and ridges, rapid-shutdown compliance, and labeling requirements. But flat roofs add a physical complication: the fire setback rules designed for emergency responder access on a pitched roof (typically a 3-foot clear path to the ridge) translate differently when the roof is horizontal. Some jurisdictions apply the setback rules to all four sides of a flat-roof array, which can meaningfully reduce usable array area on a smaller residential roof — potentially cutting available panel count by 3–5 panels on a compact design.

California, which processed more than 300,000 residential solar permits in 2023 according to SEIA, has specific Title 24 provisions affecting flat-roof cool-roof requirements when solar is added. Installers there must confirm the remaining exposed roof area still meets the solar reflectance index (SRI) requirements after panel placement — a compliance step not required in most other states.

Interconnection timelines follow the same process as pitched-roof systems once permits are approved: utility review, meter upgrade if needed, and Permission to Operate (PTO). In faster-approval states like Florida, this can happen within one week of final inspection. In states with slower utility review processes, PTO can take 4–8 weeks after installation is complete, during which the system is fully installed but cannot legally export power. Planning for this delay matters when calculating first-year savings — a system installed in October that doesn’t receive PTO until December loses roughly two months of production credit.

Municipalities in states with strong solar mandates often have dedicated solar permit desks that can cut review time to under 5 business days for straightforward flat-roof applications. Asking your installer about local permit turnaround before signing gives you a realistic project timeline and helps set expectations around your system start date and first bill impact.

Flat Roof Solar Costs, Payback Period, and Long-Term ROI

Flat-roof solar costs more to install than a pitched-roof equivalent — and it still pays off for most homeowners. The cost premium is real but bounded, and the 30% federal tax credit applies equally regardless of roof type.

Labour and materials for a flat-roof system typically run $0.30–$0.60 per watt more than a comparable pitched-roof installation, driven by tilt-racking hardware ($400–$900 for a residential array), structural assessment ($300–$600), and extended installation time. On a 7 kW system, this adds $2,100–$5,250 to the baseline system cost, pushing total installed costs to roughly $21,000–$28,000 before incentives in most markets.

After the federal solar tax credit — currently 30% under the Inflation Reduction Act through 2032, as confirmed by the IRS — a $25,000 flat-roof system costs $17,500 net. The solar tax credit calculator shows exactly how the 30% credit applies to your project total, including any state incentive stacking. Many states layer additional value on top: New York offers the NY-Sun incentive plus a 25% state tax credit capped at $5,000, which can bring the net system cost below $14,000 on an average installation.

Energy output from a properly tilted flat-roof system is comparable to a pitched-roof system at similar orientation. A 7 kW system tilted at 25°–30° south-facing in Texas produces approximately 9,800–10,200 kWh annually per NREL PVWatts data — enough to offset 80–90% of a typical Texas household’s electricity consumption. At an average Texas electricity rate of $0.133/kWh per EIA 2025 data, that equals $1,303–$1,357 in annual savings before net metering credit.

Payback period for a flat-roof system in a moderate-sun state typically runs 8–11 years — about 1–2 years longer than a comparable pitched-roof installation in the same market, primarily because of higher upfront cost. Over a 25-year panel warranty period, even a system with a 10-year payback generates 15 years of essentially free electricity — a return of $19,500–$22,000 in avoided utility costs at today’s rates, before accounting for electricity price inflation, which has averaged 2.4% annually over the past decade according to EIA. To model the full lifetime value including panel degradation, utility rate escalation, and financing costs, the solar ROI calculator is the most comprehensive tool. For a year-by-year return projection specific to flat-roof cost premiums and your state incentives, the solar payback calculator is the fastest starting point. For state-level payback data with the ITC applied, see our guide to Solar Panel Payback Period by State.

Solar vs utility company · 25-year comparison

Total cost of staying on the grid vs owning solar for a $300/month bill (national average assumptions).

Total utility payments

$75,000

Total solar cost (after ITC)

$16,800

Net savings

+$58,200

Avg. monthly difference

+$127/mo

See my savings →

Frequently asked questions

Direct answers for US homeowners — sized for a $150/month electric bill.

Do flat roof solar panels produce less electricity than pitched roof panels?

Not necessarily. A properly tilted flat-roof system produces output within 3–5% of a comparable south-facing pitched-roof system. The key is using tilt racking set to 20°–30°. A 10° tilt reduces output by 8–12% compared to a latitude-optimised angle, according to NREL. Racking choice is the single biggest variable controlling production on a flat roof.

How much extra does solar cost on a flat roof?

Can you put solar panels on a flat roof without drilling holes?

What is the best tilt angle for solar panels on a flat roof?

Will solar panels damage a flat roof?

$150/month electric bill by state

System size and payback vary by electricity rate and sun hours — see your state.

CA California $150/mo · 29.4¢/kWh TX Texas $150/mo · 13.8¢/kWh FL Florida $150/mo · 13.5¢/kWh AZ Arizona $150/mo · 13.2¢/kWh NC North Carolina $150/mo · 12.8¢/kWh NY New York $150/mo · 22.4¢/kWh MA Massachusetts $150/mo · 24.5¢/kWh CO Colorado $150/mo · 14.2¢/kWh

Compare all 50 states for $150/mo →

Popular state solar guides

Electricity rates and incentives vary — see data for your state.

CA California 29.4¢/kWh · 5.8h sun TX Texas 13.8¢/kWh · 5.6h sun FL Florida 13.5¢/kWh · 5.7h sun AZ Arizona 13.2¢/kWh · 6.5h sun NC North Carolina 12.8¢/kWh · 5.2h sun NY New York 22.4¢/kWh · 4.3h sun MA Massachusetts 24.5¢/kWh · 4.2h sun CO Colorado 14.2¢/kWh · 5.5h sun

View all 50 states →

Popular utility companies

Solar rules and net metering vary by utility — not just by state.

PG&E California Duke Energy NC · FL · Midwest Florida Power & Light Florida Oncor Texas APS Arizona Georgia Power Georgia

Methodology & data sources

Calculation method: System size uses NREL PVWatts derate factor (0.82). Costs based on SEIA 2026 installed cost ($2.75–$3.20/W). Payback uses net cost after 30% federal ITC (IRC Section 25D). Savings assume full-retail net metering unless noted.

Official sources: EIA state electricity rates · NREL PVWatts · Energy.gov ITC guide · DSIRE incentives · SEIA market data · IRS Publication 5695.

All figures are estimates for educational purposes — not tax, legal, or investment advice. Consult a licensed installer and CPA for your situation.
