How Much Power Does a 6kW Solar System Produce?

What Factors Most Affect a 6kW System’s Real-World Output?

Five variables have the biggest influence on how much electricity a 6kW system generates: sunshine, roof orientation and tilt, shading, temperature, and inverter design.

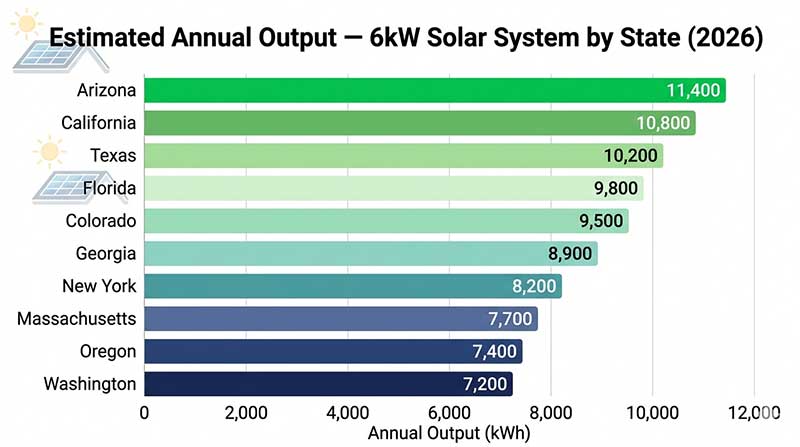

Sunshine (peak sun hours). This is the largest driver. Moving from a 3.5-hour location to a 6.5-hour location raises annual output by roughly 85% for the same hardware (see the chart in the next section).

Roof orientation and tilt. South-facing roofs at a moderate pitch (roughly 20° to 40°) generally capture the most annual sunlight in the continental U.S. East- or west-facing arrays often produce about 10% to 20% less than a comparable south-facing array, though west-facing panels can align better with late-afternoon electricity prices in some markets.

Shading. In a string-inverter system, shade on one panel can reduce the output of the whole string. Microinverters or DC power optimizers limit that loss by letting each panel operate independently. Have an installer run a shade analysis before you sign.

Temperature. Solar panels lose roughly 0.3% to 0.4% of output for every degree Celsius above 25°C (77°F). On very hot afternoons, when panels can exceed 60°C, output can fall about 10% to 15% below rated performance, even with full sunshine. Cooler, clear days are often more efficient than hot ones.

Inverter design and system losses. Modern string inverters and microinverters both convert DC to AC at roughly 96% to 98% efficiency, so the choice matters less for efficiency than for shade tolerance, monitoring and warranty. Wiring, dirt on panels and panel aging also add small losses; most panels degrade around 0.5% per year, according to NREL’s published review of degradation rates.

What Will a 6kW Solar System Cost and Save You?

A 6kW system typically costs $15,000 to $21,000 before incentives in 2026, based on installed prices of about $2.50 to $3.50 per watt. At the U.S. average residential electricity price of 16.5 cents per kWh (EIA, 2024), a system producing about 8,100 kWh per year saves roughly $1,330 per year, or about $111 per month.

That puts simple payback at around 13.5 years on an $18,000 system with no incentives. Because savings scale directly with your electricity price, payback varies a great deal:

Chart summary: Payback ranges from about 18.6 years at 12¢/kWh to about 6.4 years at 35¢/kWh. Every increase in your electricity price shortens payback because each kWh your panels produce displaces a more expensive kWh from the grid. This is a simplified model: it assumes all output is credited at the full retail rate and ignores financing costs, rate increases, panel degradation and incentives.

Chart summary: The line starts at -$18,000 and crosses zero around year 14, then climbs to roughly +$13,400 by year 25. The curve flattens slightly over time because panels lose about 0.5% of output per year. Utility rate increases would steepen the line and move break-even earlier.

Net metering rules matter. Some utilities credit exported solar at full retail rates; others pay a lower export rate, which lengthens payback for systems that send a lot of power to the grid. Check your utility’s current policy before relying on any savings estimate. Over 25 years, and allowing for 0.5% annual panel degradation, the same 6kW system would produce about 190,000 kWh, worth roughly $31,000 at a constant 16.5 cents per kWh, or about $13,000 more than an $18,000 purchase price. Rising utility rates would increase that figure; financing costs would reduce it.

State programs can improve the numbers. For example, Massachusetts offers a state income tax credit of 15% of system cost (capped at $1,000) and a property tax exemption for solar value added, and New York offers a state credit of 25% capped at $5,000. Programs change often, so confirm current details in the DSIRE database or with your state energy office. To model your own situation, use our solar payback calculator.

For a broader price breakdown by system size and region, see How Much Do Solar Panels Cost in 2026? and How Much Do Solar Panels Cost for a 2,000 Sq Ft Home?.

Methodology and Sources

Production estimates use the formula: system size (kW) × peak sun hours × 365 × 0.82, where 0.82 approximates the combined effect of typical system losses and inverter efficiency (consistent with PVWatts defaults). Savings use the EIA national average residential price and are simplified; they exclude financing, rate escalation, net-metering limits and incentives. Always get a site-specific estimate before buying.

• U.S. Energy Information Administration, “Today in Energy”: average U.S. residential electricity price (16.5¢/kWh), monthly consumption (865 kWh) and average monthly bill ($144) for 2024. eia.gov
• NREL PVWatts Calculator, for site-specific production estimates. pvwatts.nrel.gov
• NREL, “Photovoltaic Degradation Rates: An Analytic Review” (median degradation about 0.5% per year).
• IRS, Residential Clean Energy Credit (Section 25D) status and Form 5695. irs.gov
• Installed cost range ($2.50–$3.50 per watt) from published 2026 marketplace pricing guides, e.g., Solar.com.
• DSIRE, Database of State Incentives for Renewables & Efficiency. dsireusa.org
